Background and Inspiration
I came across this video on social media and got inspired to see if I could replicate it by dusting off an old face detection app I made that uses OpenCV.
The video of the project that inspired this is below:
As part of the challenge, I wanted to avoid looking at any documentation that the project included and just try to design the project from scratch using only the video as guidance and to see how I might be able to improve upon the hardware.
Once I completed the project, I finally opened the github repository for his project to see our difference in approach. In the end the overall approach was very similar, one major difference, which I think made his solution more elegant, was that he uses the python program to control the Arduino directly, whereas I have programmed the Arduino seperately and am sending the coordinates to the arduino from my laptop over the USB Serial, which results in a minor delay in the reactivity of the servo, compared to his project.
Either way, it was a really fun project and experience. I will share the methodology and details of my approach to the problem below.
Python AI face detection App
Here is a video of the python program in action:
Below is the python code:
import cv2
import os
import time
import serial
from kivy.app import App
from kivy.uix.gridlayout import GridLayout
from kivy.uix.label import Label
from kivy.uix.button import Button
#Get the path of the current script
script_path=os.path.abspath(__file__)
# Get the directory containing the script
script_directory = os.path.dirname(script_path)
# Concatenate the script directory with the face XML file name
cascade_face_path = os.path.join(script_directory, 'haarcascade_frontalface_default.xml')
# Concatenate the script directory with the Smile XML file name
cascade_smile_path = os.path.join(script_directory, 'haarcascade_smile.xml')
# Open a connection to the serial port (adjust the port and baud rate as needed)
# ser = serial.Serial('/dev/ttyACM0', 115200)
# Create an App class called FaceDetect
class FaceDetect(App):
#Build a window named self and set the columns
def build(self):
self.window = GridLayout()
self.window.cols = 1
self.window.size_hint = (0.6, 0.7)
self.window.pos_hint = {"center_x":0.5, "center_y":0.5 }
# Add widgets to the window
# Create a lable widget with a greeting
self.greeting = Label(
text = "Welcome to Paul's Facial Recognition App",
font_size = 32,
color = '#00FFCE'
)
self.window.add_widget(self.greeting)
# Create a label widget with a prompt
self.prompt = Label(
text = "Please select the functionality",
font_size = 16
)
self.window.add_widget(self.prompt)
# Create a button widget with face detector only
self.face = Button(
text = "Track face only",
size_hint = (1,0.5),
bold = True,
background_color = '#00FFCE'
)
self.face.bind(on_press = self.track_face)
self.window.add_widget(self.face)
# Create a button widget with face and smile detector
self.face_smile = Button(
text = "Track face and smile",
size_hint = (1,0.5),
bold = True,
background_color = '#00FFCE'
)
self.face_smile.bind(on_press = self.track_face_smile)
self.window.add_widget(self.face_smile)
return self.window
#Function that launches face tracker on button press
def track_face(self, instance):
# Load some pre-trained data on face frontals from opencv (haar cascade algorithm)
trained_face_data = cv2.CascadeClassifier(cascade_face_path)
# Choose an image to detect faces in
#img = cv2.imread('paulface.jpg')
# Capture video from webcam
webcam = cv2.VideoCapture(0)
while True:
#Read the current frame
succesful_frame_read, frame = webcam.read()
# Convert the image to greyscale
img_greyscale = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
# Detect faces
face_coordinates = trained_face_data.detectMultiScale(img_greyscale)
# Initialize empty variables to find the bigest face
biggest_face_width = 0
biggest_face = None
# last_biggest_face = (320,240,0,0)
# Find the biggest face in the face_coordinates array
for (x,y,w,h) in face_coordinates:
if w > biggest_face_width:
biggest_face_width = w
biggest_face = (x,y,w,h)
cv2.rectangle(frame,(x, y),(x+w, y+h),(0,255,0), 3)
# If a face is detected, send face coordinates to Arduino via serial port
if biggest_face is not None:
# last_biggest_face = biggest_face
x, y, w, h = biggest_face
cv2.rectangle(frame,(x, y),(x+w, y+h),(0,0, 255), 3)
coordinates_string = f"{x},{y},{w},{h}\n"
# ser.write(coordinates_string.encode('utf-8'))
print(coordinates_string)
# else:
# x, y, w, h = last_biggest_face
# none_detected = f"{x},{y},{w},{h}\n"
# ser.write(none_detected.encode('utf-8'))
# print(none_detected)
#Flip the frame horizontally
mirrored_frame = cv2.flip(frame, 1)
#Add Label with prompt to press ESC to exit
cv2.putText(mirrored_frame, 'PRESS ESC TO EXIT PROGRAM', (40 ,40), fontScale = 2, fontFace = cv2.FONT_HERSHEY_PLAIN, color=(255, 255, 255))
# Display the image with boxes around the detected faces
cv2.imshow('Clever Programmer Face Detector Grey', mirrored_frame)
key = cv2.waitKey(1)
#Exit the program if Q key is pressed
if key == 27:
break
#Realease the webcam
webcam.release()
cv2.destroyAllWindows()
# Function that launches face and smile tracker on button press
def track_face_smile(self, instance):
# Load some pre-trained data on face frontals and smiles from opencv (haar cascade algorithm)
trained_face_data = cv2.CascadeClassifier(cascade_face_path)
trained_smile_data = cv2.CascadeClassifier(cascade_smile_path)
# Capture video from webcam
webcam = cv2.VideoCapture(0)
while True:
#Read the current frame
succesful_frame_read, frame = webcam.read()
# Convert the image to greyscale
img_greyscale = cv2.cvtColor(frame, cv2.COLOR_BGR2GRAY)
# Detect faces
face_coordinates = trained_face_data.detectMultiScale(img_greyscale, minNeighbors = 10)
# Create rectangles around the detected faces and create a different color box around each one
for (x,y,w,h) in face_coordinates:
#Draw a rectangle around the face
cv2.rectangle(frame,(x, y),(x+w, y+h),(0,255,0), 3)
# Send face coordinates to Arduino via serial port
coordinates_string = f"{x},{y},{w},{h}\n"
ser.write(coordinates_string.encode('utf-8'))
# Create image the size of each face box
the_face = frame[y:y+h, x:x+w]
#Change facebox subset to greuscale
face_greyscale = cv2.cvtColor(the_face, cv2.COLOR_BGR2GRAY)
# Search for smiles within each face box
smiles = trained_smile_data.detectMultiScale(face_greyscale, scaleFactor = 1.3, minNeighbors = 12)
# Run smile detection within each of the faces
for (a,b,c,d) in smiles:
#Draw a rectangle around each detected smile within the face
cv2.rectangle(the_face, (a, b), (a+c, b+d),(0,0,255),3)
#Label this face as smiling
if len(smiles) > 0:
cv2.putText(frame, 'SMILING', (x ,y+h+40), fontScale = 2, fontFace = cv2.FONT_HERSHEY_PLAIN, color=(255, 255, 255))
#Add Label with prompt to press ESC to exit
cv2.putText(frame, 'PRESS ESC TO EXIT PROGRAM', (40 ,40), fontScale = 2, fontFace = cv2.FONT_HERSHEY_PLAIN, color=(255, 255, 255))
# Display the image with boxes around the detected faces
cv2.imshow('Clever Programmer Face and Smile Detector', frame)
key = cv2.waitKey(1)
#Exit the program if Q key is pressed
if key == 27:
break
#Release the webcam
webcam.release()
cv2.destroyAllWindows()
# Run the App called FaceDetect
if __name__ == "__main__":
FaceDetect().run()
Hardware Design
I designed the hardware for the face-follower using Solidworks. I cover details of the design on a seperate solidworks page. You can find it here
CAD

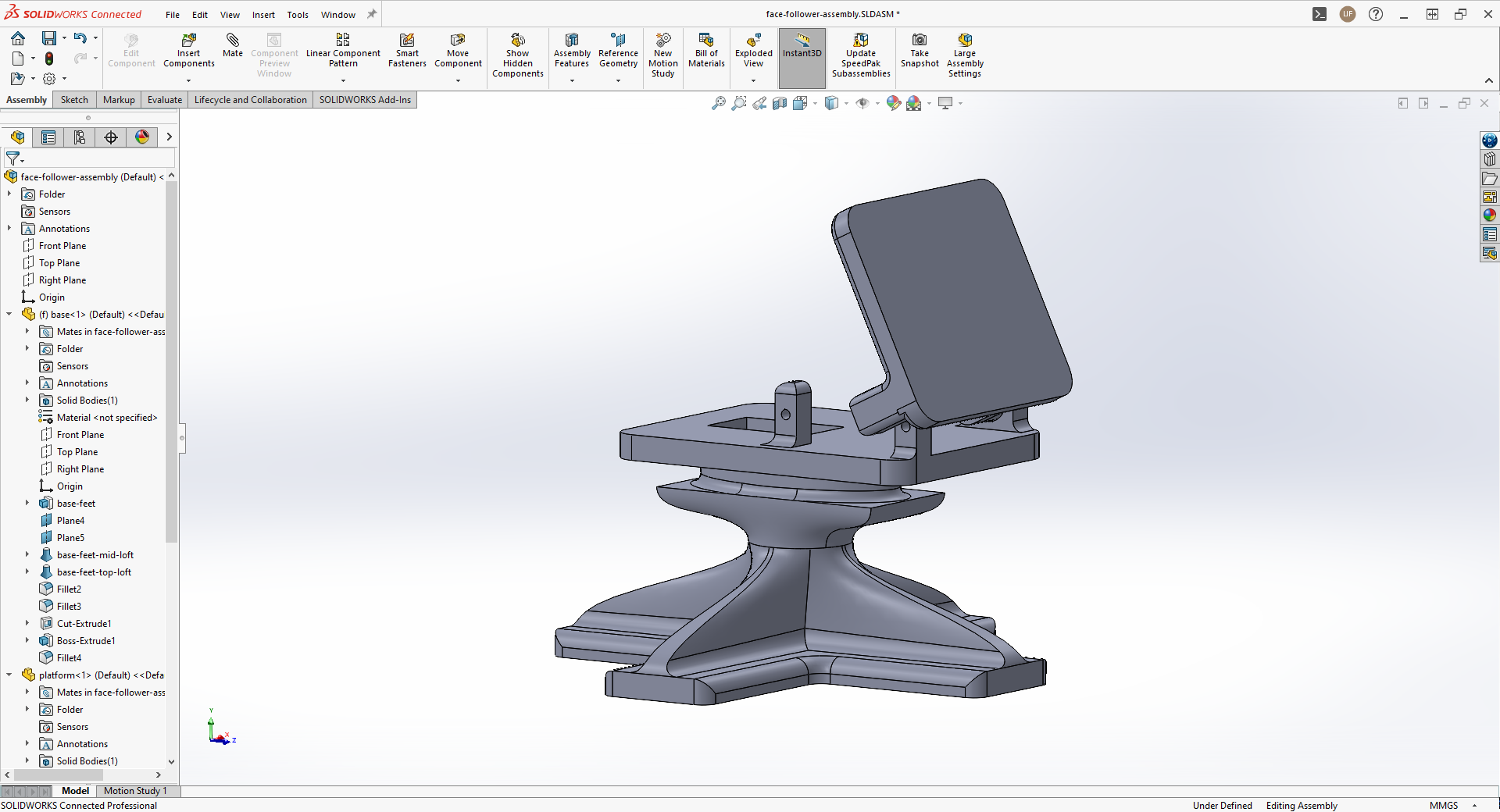

I have included some of the Solidworks images and videos below:
3D printing

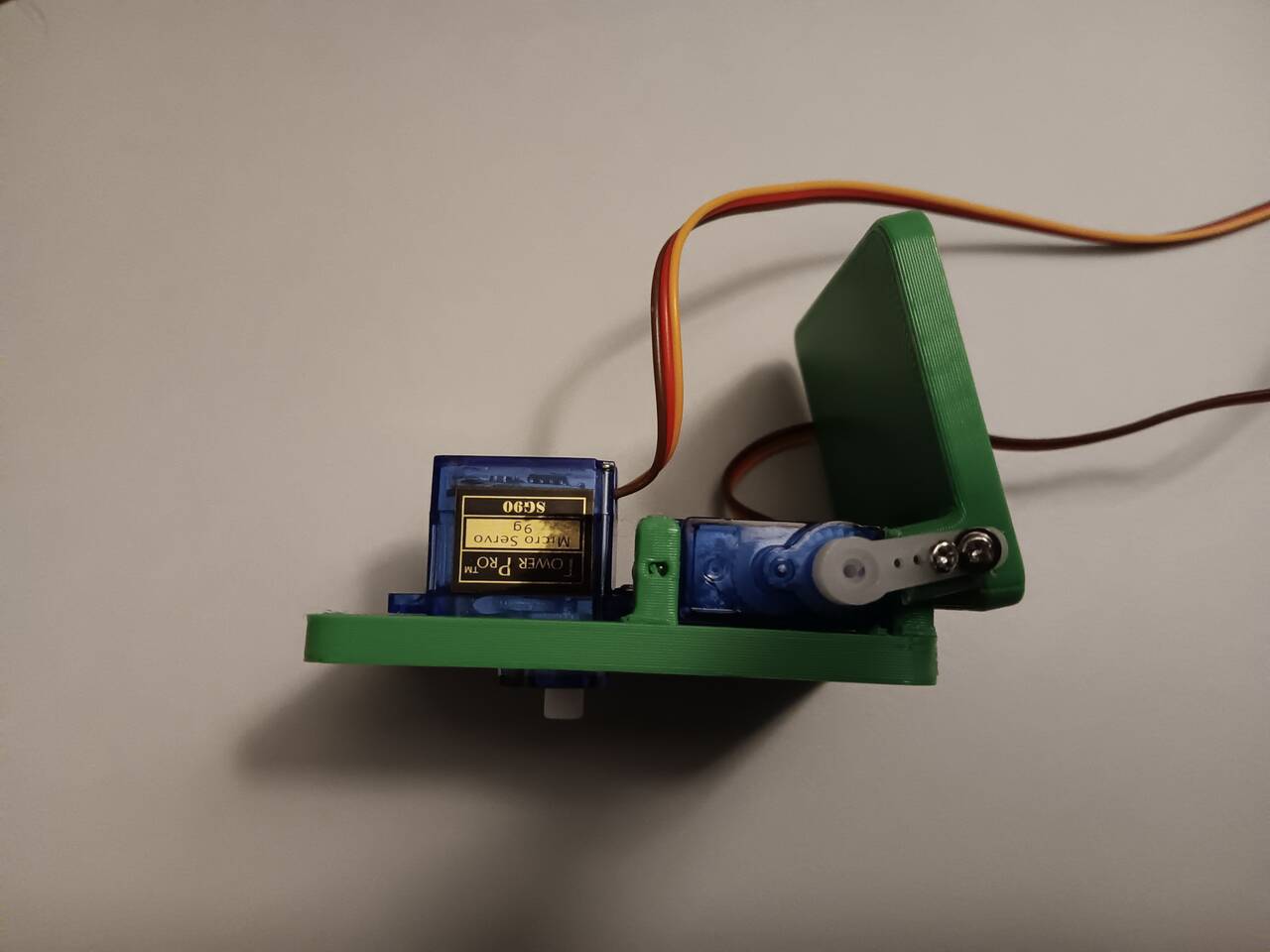

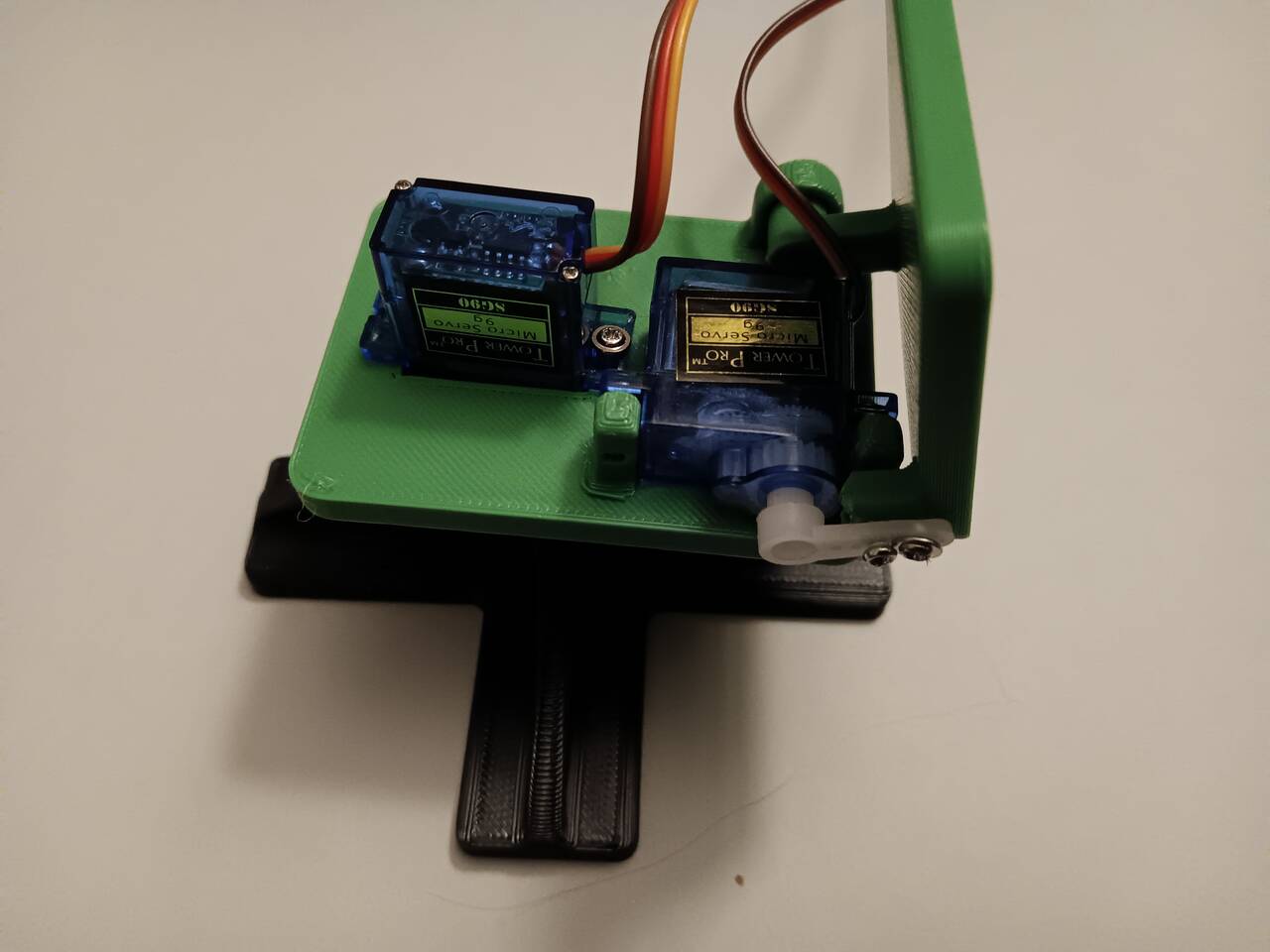

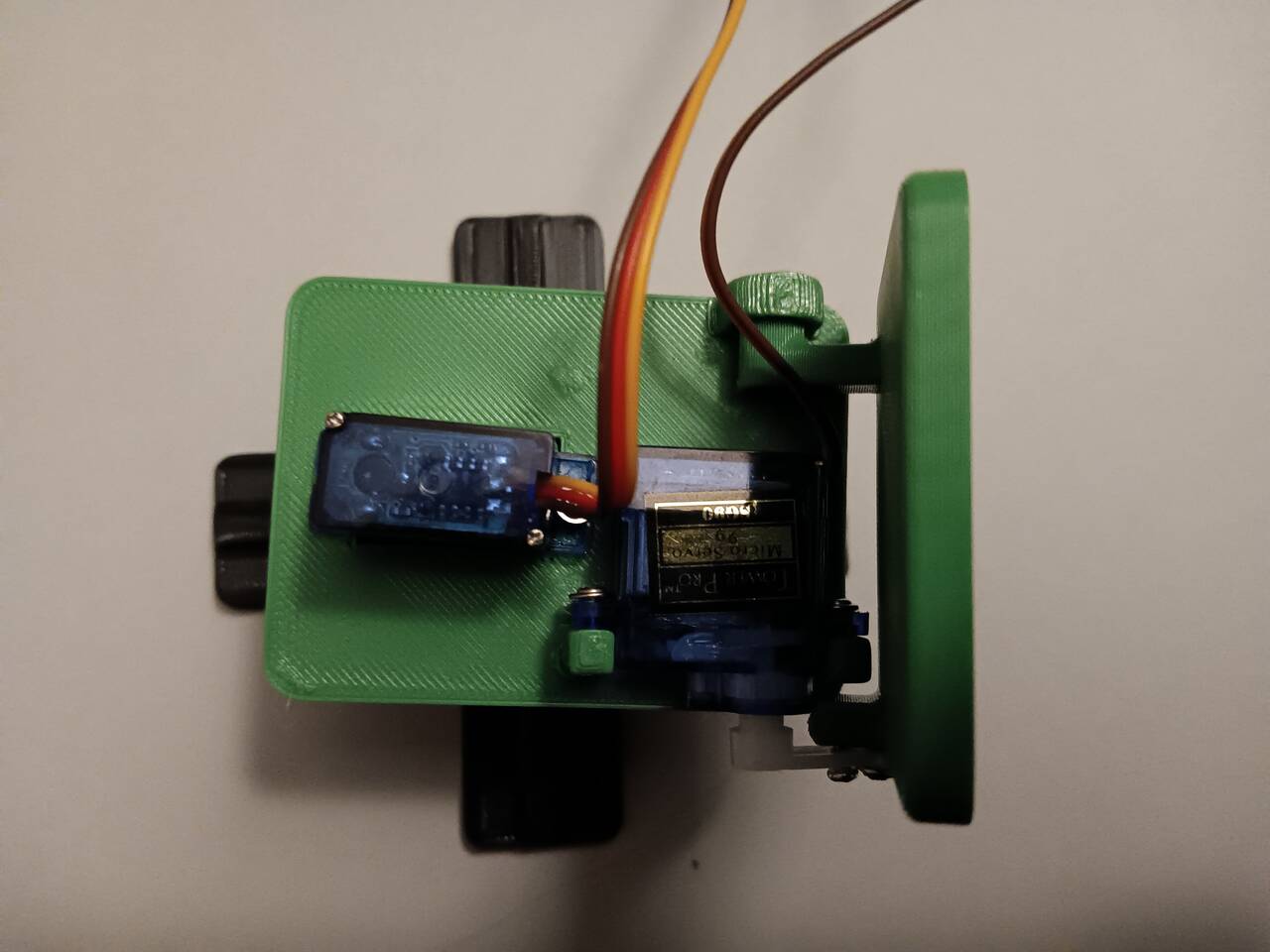

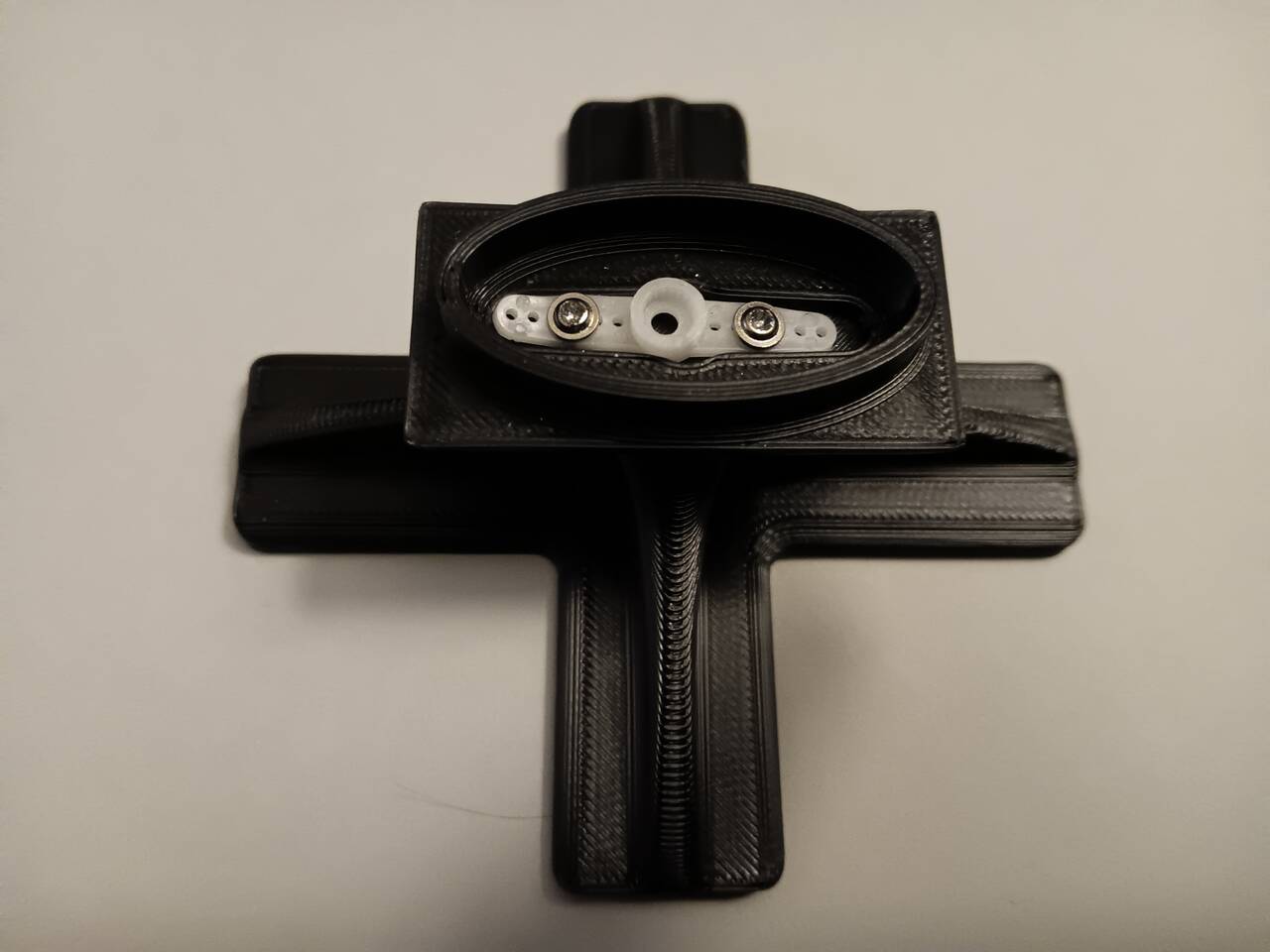

I 3D printed the parts using a Prusa 3D printer with PLA. I chose draft print settings. Unfortunately I didn’t take any photos of the printing process. But I do have a photo of the end result.
Ardiuino Program
Below is the Arduino program. Note that I took a few different approaches, and have some of the other approaches commented out in the code.
#include <Servo.h>
// y Servo can go from 0 to 60 degrees
// X Servo can go from 0 to 180 degrees with forward being at 90 degrees althought it might be better to go from 90 +- 45 (45 to 135)
int xPrevious;
int yPrevious;
int wPrevious;
int hPrevious;
int counter = 0;
int counts = 7;
const float smoothingFactor = 0.1;
float smoothedAngleX = 90.0;
float smoothedAngleY = 0.0;
Servo xServo;
Servo yServo;
void setup() {
Serial.begin(115200);
xServo.attach(8);
yServo.attach(9);
xServo.write(90);
yServo.write(0);
}
void loop() {
//// Code to test the servos and their positions. Uncomment this code and comment all of the code below "Servo Testing" to run the servo test program
// for(int i=3; i<=9; i++){
// int j = i*15; // for x go at increments of 15 degrees from 45 to 135 degrees
// int k = (i-3)*10; // for y go at increments of 10 degrees
// Serial.println(j);
// xServo.write(j);
// yServo.write(k);
// delay(1000);
// }
// Serial.println("Servo Testing")
// If the Serial is available, read it
if(Serial.available()>0){
String coordinates = Serial.readStringUntil('\n');
// Parse the coordinates printed on the serial into integers
int x,y,w,h;
sscanf(coordinates.c_str(), "%d,%d,%d,%d", &x,&y,&w,&h);
// If we are returned a strange value, set x, y, w, or h to what they were previously
if(x>640){
x = xPrevious;
}else{
xPrevious = x;
}
if(y>640){
y = yPrevious;
}else{
yPrevious = y;
}
if(w>640){
w = wPrevious;
}else{
wPrevious = w;
}
if(h>640){
h = hPrevious;
}else{
hPrevious = h;
}
// Find the center of the box
float xCenter = (x+(w/2)); // Account for the fact that xPosition zero is at center of screen
float yCenter = y+(h/2);
// Method 1: Take the image and convert it to cm and calculate an angle based on the geometry
// Convert the center value of the box into a distance in cm knowing that the window frame height is 480 px and at a distance of 1m from the camera this corelates to 75cm in y and 100 cm wide
// float xPosition = (xCenter/640)*100;
// float yPosition = (yCenter/480)*75;
// // Convert the x and y positions into radians
// float xAngleRadians = atan2(xPosition, 100);
// float yAngleRadians = atan2(yPosition, 100);
// // Convert the x and y radians to degrees subtract from 135 and 60 degrees which are motor positions to aim at (0,0)
// int xDegrees = 135-degrees(xAngleRadians);
// int yDegrees = 60-degrees(yAngleRadians);//Add 90 degrees because of the way the servo arm is set up (need to correct this)
// xServo.write(xDegrees);
// yServo.write(yDegrees);
// Method 2 (simpler method): Convert the x and y position coordinates into a % of the range in degrees (135 to 45 for x) and (60 to 0) for y
int xDegrees = 135-(xCenter/640)*90;
int yDegrees = 60-(yCenter/480)*60;
// Round to the nearest 10 degrees
int xDegreesRounded = round(xDegrees/5.0)*5;
int yDegreesRounded = round(yDegrees/5.0)*5;
// Smooth out the motion
// smoothedAngleX = smoothingFactor * xDegrees + (1 - smoothingFactor) * smoothedAngleX;
// smoothedAngleY = smoothingFactor * yDegrees + (1 - smoothingFactor) * smoothedAngleY;
if(counter == counts){
xServo.write(xDegreesRounded);
yServo.write(yDegreesRounded);
}
counter++;
if(counter == counts+1){
counter = 0;
}
}
}
